Huawei Smart Wall Switches (Live wire version)

Introduction

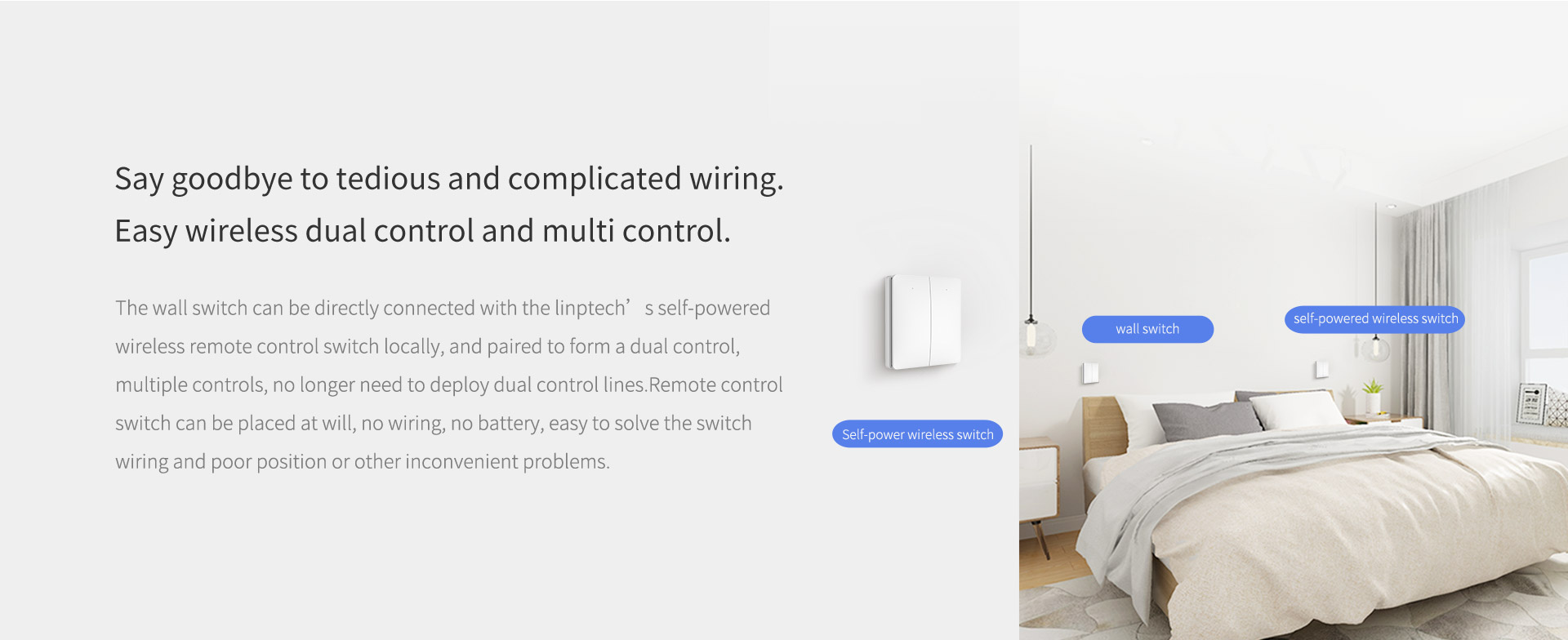

Linptech smart wall switch adopts the standard 86 type specification, without changing the line, directly replacing the traditional switch, you can make your lamp intelligent; it can control all kinds of common lamps without a gateway. It can be directly connected to Huawei HiLink to realize smart speaker voice control, APP remote control, timing switch lights. Work with self-powered wireless switch, no wiring, wireless pairing, dual control or multi-control, and one-key linkage smart home platform equipment.

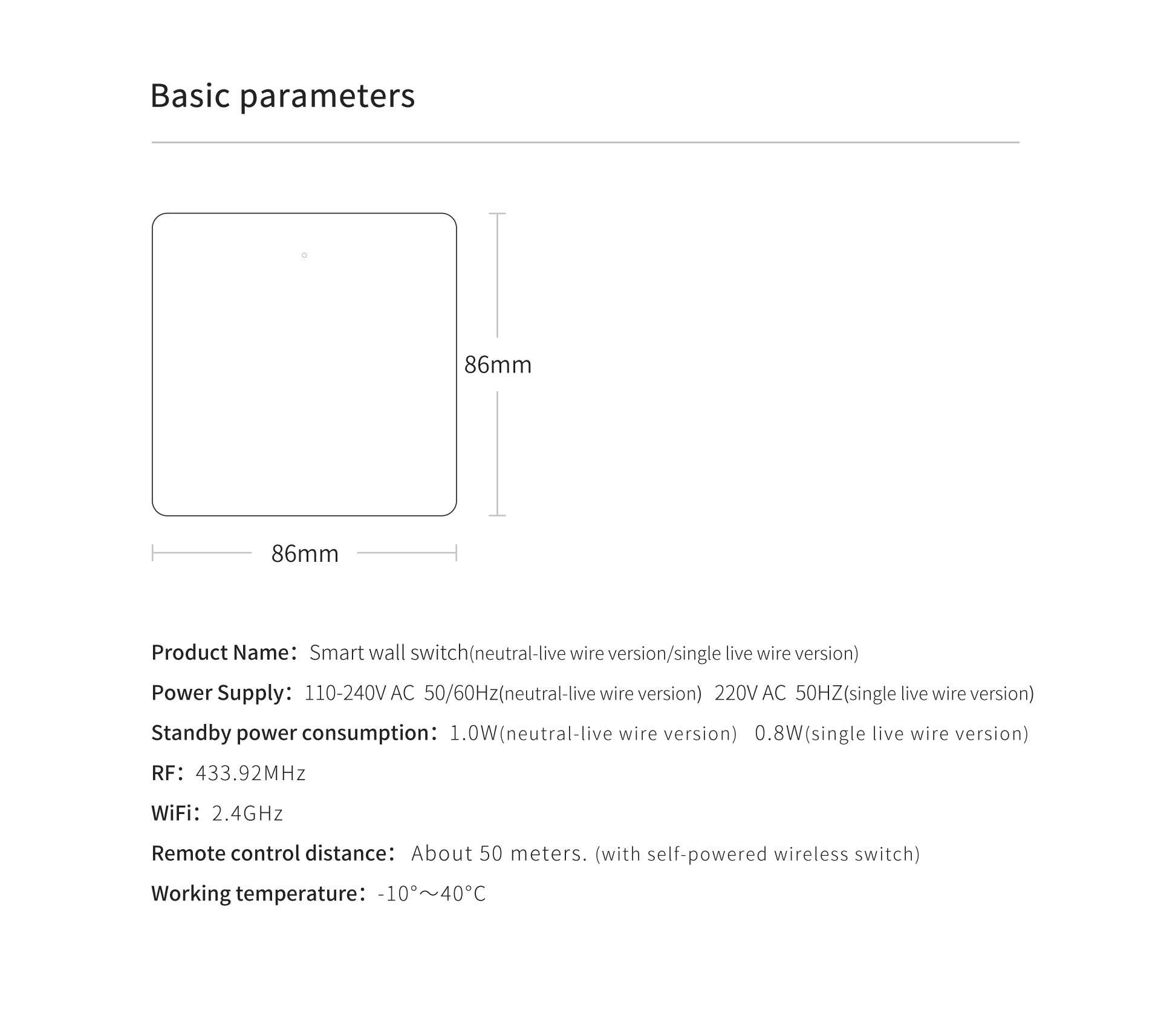

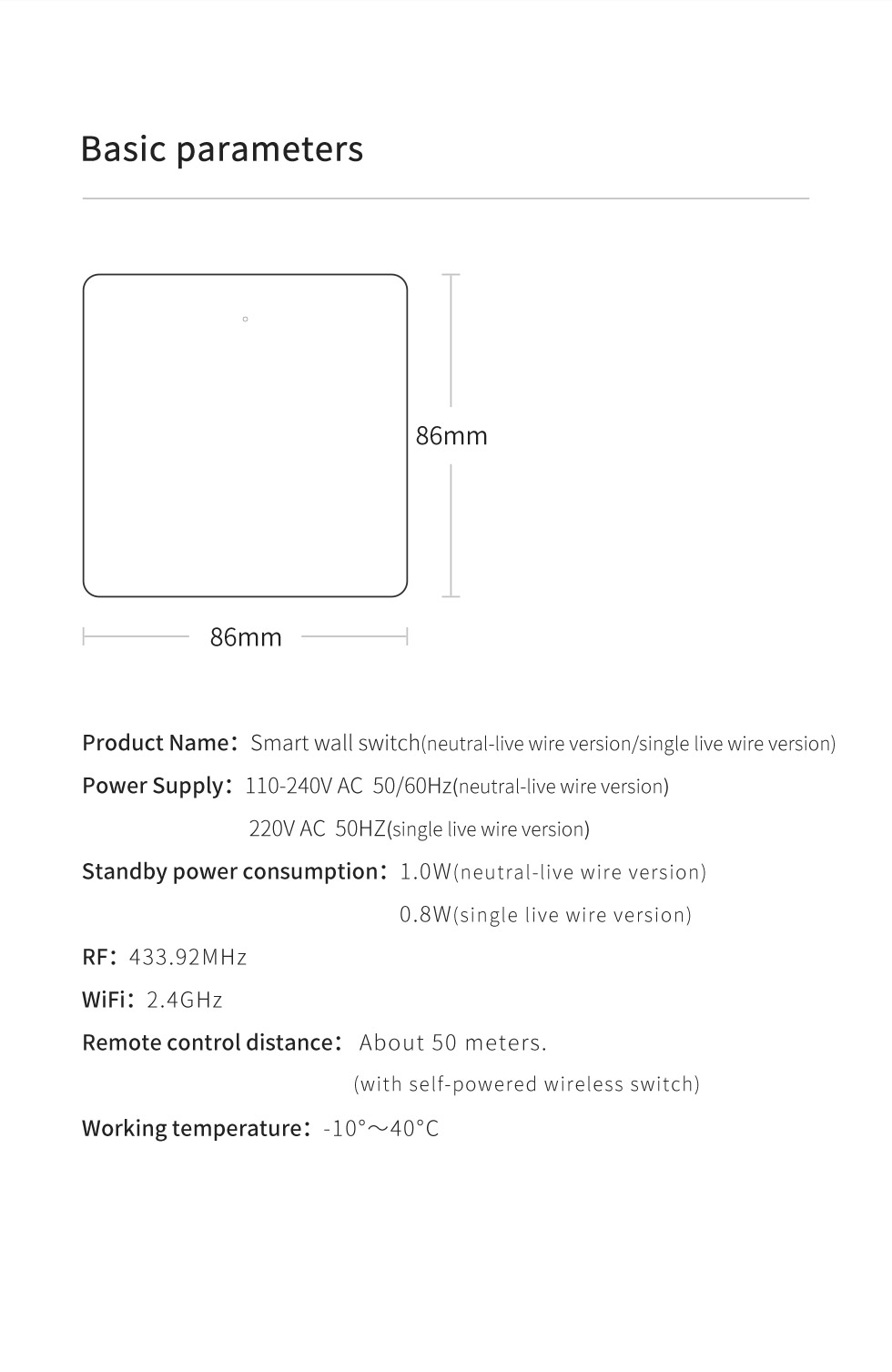

Parameters

  • Name
    Huawei Smart Wall Switches (Live wire version)
  • Model
    Q3S-HW
  • Product Size
    86×86×33.5mm
  • Power Input
    110V-240V AC,50/60HZ
  • Standby power consumption
    1W
  • Wireless frequency
    CC433/ WiFi

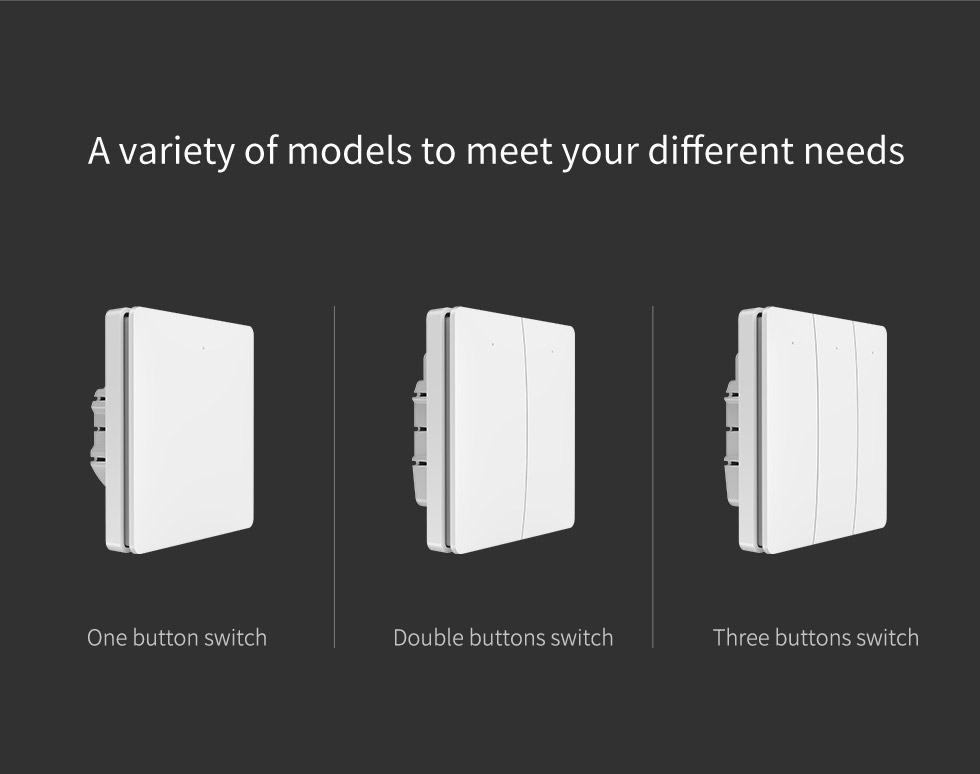

  • Number of keys

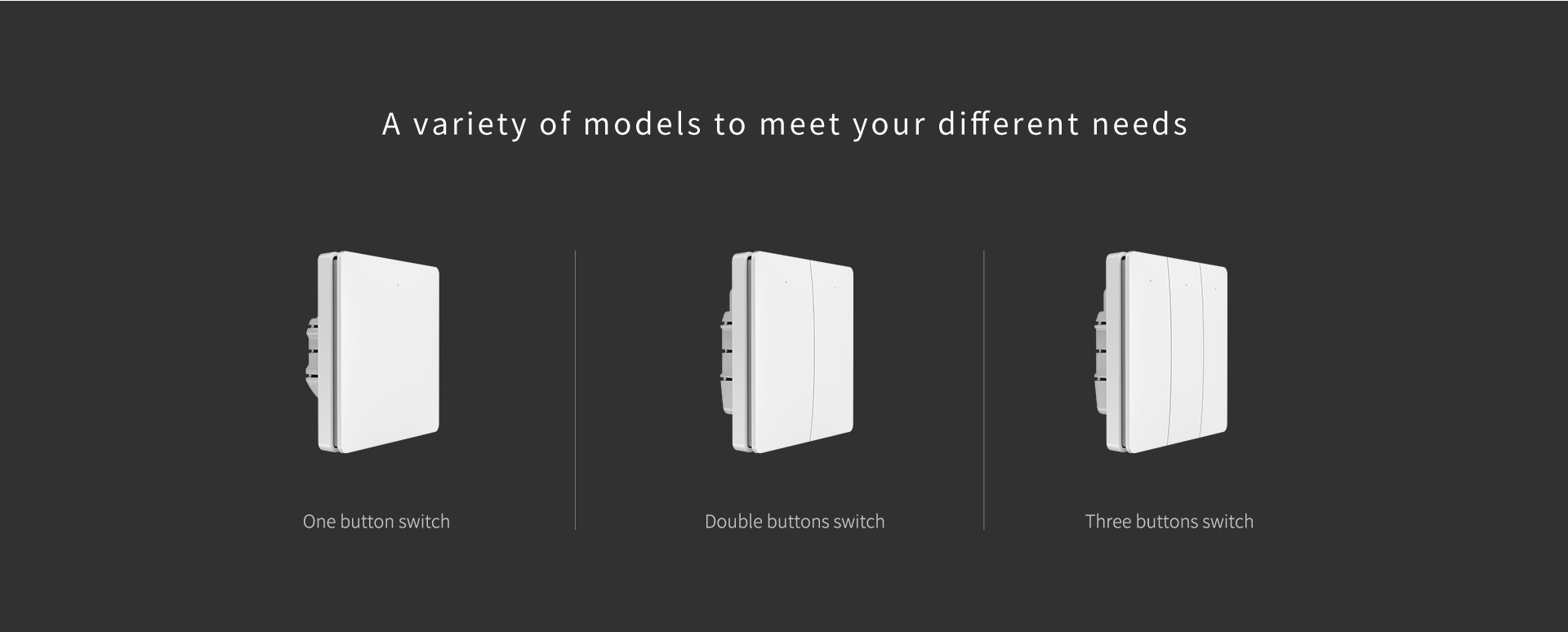

    1/2/3 gang
  • Remote control distance
    50m
  • Output current
    10A MAX
  • Power load
    No more than 500W per channel
  • Colour
    White, gray, champagne gold
